Features and Configuration For Shanling M6 Pro:-

> High-Performance Dual DAC Setup by AKM, AK4497EQ x 2.

>PCM Decoding up to 32-Bit/768kHz, DSD up to DSD256 Natively.

>Lightning Fast Snapdragon 430 Processor.

>4GB RAM+32GB ROM.

>An upgraded circuit including 4 Low pass filters OPA1622+ADA4610-2 + BUF634 x 2, providing a fully balanced output.

>Open Android Operating System.

>Three Output Ports: 2.5mm Balanced, 4.4mm balanced, and 3.5mm single-ended.

>Three Mode Hardware Gain Switch: Low Gain/ High Gain/ Ultra High Gain Mode.

>Crisp 720P Display

>Two-Way Bluetooth V4.2 support with Hi-res codes support(Two-way supports LDAC, SBC, only Transmission mode supports: AptX, AptX HD, HWA).

>Battery Life: Up to 13 hours(Single Ended Single DAC Mode).

Up to 9 hours(Single Ended Dual DAC Mode).

Up to 8 hours(Balanced Mode Dual DAC).

>Dual Band Wi-Fi support:- 2.4GHz/5GHz.

>Weight: 244 grams.

>TF Memory Card supported up to 512gb capacity.

>4000mAh Battery which supports QC3.0 quick charging.

Output Power:-

3.5mm Single-Ended Mode:-

>Output: 19mW @ 32Ω (low gain), 47mW @ 32Ω (high gain), 200mW @ 32Ω (ultra high gain).

>Signal-to-noise ratio: 121 dB.

>Dynamic range: 121dB.

>Channel separation : 75 dB (32 Ω).

>THD + N: <0.0009%.

>Output impedance: <1Ω.

2.5mm and 4.4mm Balanced Mode:-

>Output: 56mW @ 32Ω (low gain) 141mW @ 32Ω (high gain) 600mW @ 32Ω (ultra high gain).

>Signal to noise ratio: 123 dB.

>Channel separation: 110 dB (32 Ω).

>Dynamic range : 123 dB.

>THD + N: <0.0011%.

>Output impedance: <2Ω.

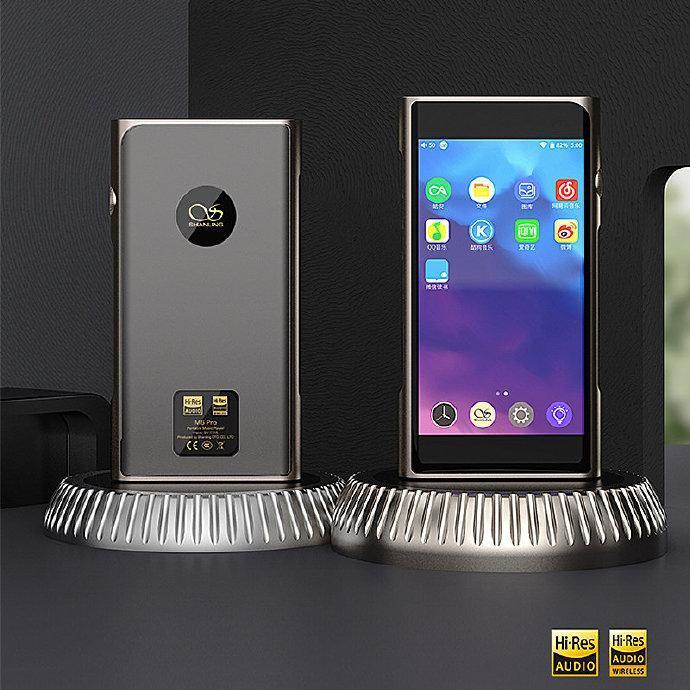

Shanling has released its latest Android-based DAP, the Shanling M6 Pro, it comes as an upgrade for its M6. It improves on many standards over the base model.

Unboxing

High-Performance AK4497EQ Dual DAC:-

The Shanling M6 Pro is equipped with a high-performance Dual DAC setup consisting of two AK4497EQ chips. The chips ensure you get a clean sound decoding without any noise and jitter. The device supports decoding PCM up to 32-Bit/768kHz, and DSD up to DSD256 natively.

Premium Components Circuitry:-

The Shanling M6 Pro has a premium component amplification circuitry. It includes four different low pass filters, OPA1622, ADA4610-2, BUF634 x 2. This circuit provides a fully balanced sound output with a cleaner amplification providing you a powerful sound output with no noise floor. It is able to give a powerful output of up to 600mW at 32 ohms of load.

Lightning-Fast Chipset:-

The Shanling M6 Pro is equipped with a lightning-fast Snapdragon 430 chipset. The device has a 4GB RAM and 32GB ROM, the device offers its users a lag-free experience and a smooth user interface.

Three Output Ports for Ultimate Versatility:-

The Shanling M6 Pro offers three output ports. One 3.5mm single-ended port, one 2.5mm balanced, and one 4.4mm balanced port. So whatever kind of plug your IEM cables have the Shanling M6 Pro supports all of them straight out of the box.

Three Mode Hardware Gain Switch:-

The latest DAP is equipped with a three-mode hardware gain switch, featuring Low gain, High gain, and Ultra-High gain modes. Ultra-High gain modes push out enough juice to power your power-hungry IEM's and headphones.

Open Android Experience:-

The Shanling M6 Pro is loaded with an open Android experience so you can download and use multiple streaming Apps from the Playstore.

Package Contents:-

>One Shanling M6 Pro DAP.

>One USB Type-C Charging Cable.

>User Guide.
