$315.00The Story

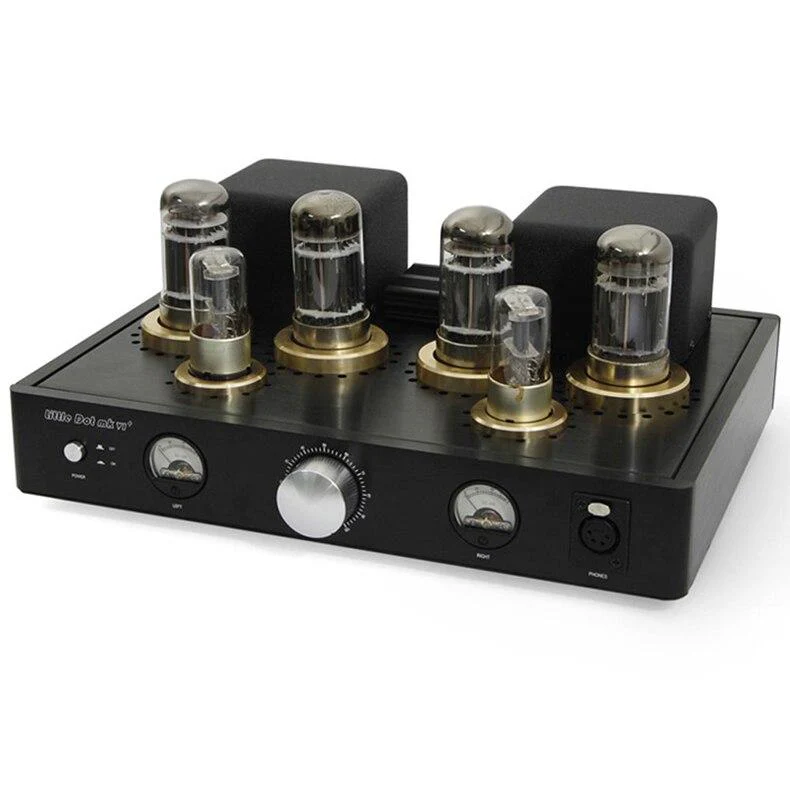

The Little Dot MK VI+ is our flagship headphone amplifier/pre-amplifier in the Little Dot MK-series. A fully balanced architecture, the Little Dot MK VI+ has exceptional dynamic range and can produce clean amplitudes of 70Vp-p into 120 ohms! The balanced Class-A SEPP (single-ended push pull) OCL (output capacitor-less) circuit topology delivers rich tonality and brute force clean power for maximum dynamics and low frequency impact.
SPECIFICATIONS:
- Fully Balanced Architecture
- SEPP (Single-ended Push Pull) OCL (Output CapacitorLess) in Class-A
- Active 2 fan cooling
- Driver Tubes: 2x 6H9C
- Power Tubes: 4x 6080WC
- Inputs:
- Balanced: 2x 3-pin XLR
- Single-ended: 2x RCA
- Outputs:
- Balanced: 4-Pin XLR
- Balanced Pre-Amp: 2x 3-pin XLR
- Single-ended: 1/4" (6.35mm) TRS Stereo jack
-
Frequency Response:Input Impedance: 50K ohms
- 5Hz - 80KHz (-3dB)
- 10Hz - 30KHz (-1dB)
- Pre-Amplifier Output Impedance: 600 ohms
-
THD+N:Power Output:
- 0.02% (2Vrms @ 1000Hz)
- 0.06% (10Vrms @ 1000Hz)
- 0.3% (20Vrms @ 1000Hz)
- 5W per channel in 120 ohms
- Power Consumption: 25 VA
- One Year Official Little Dot Warranty
