The Story
Features:-
>High-performance Dual-DAC chipset(2*AK4493).
>Hi-res Audio signal decoding.
>Supports PCM decoding up to 32-Bit/768kHz, and DSD512 natively.
>Full MQA decoding support.
>Fully balanced architecture

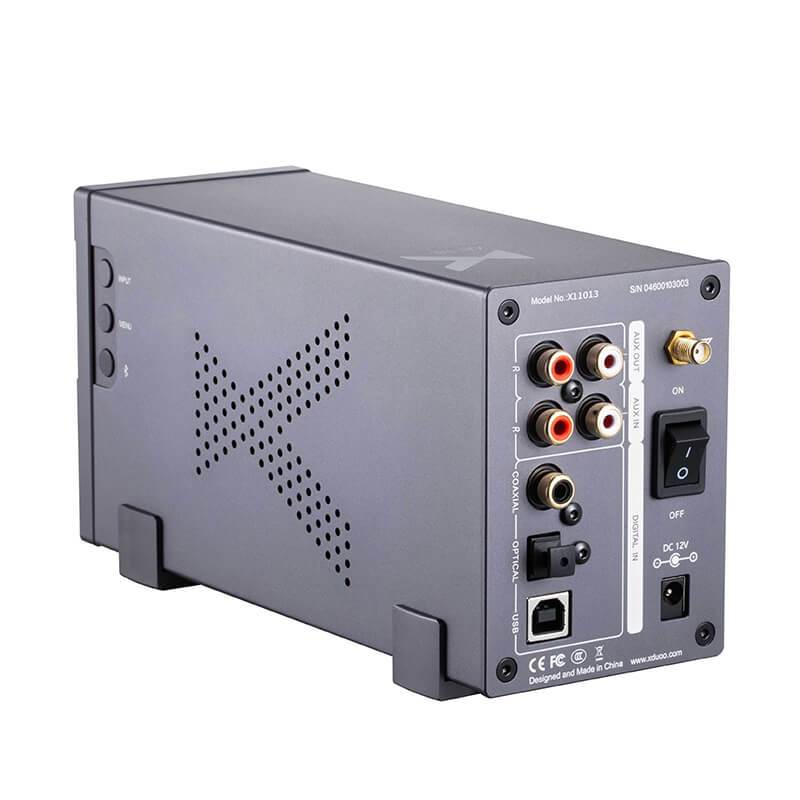

>Multiple audio signal input options, USB, Optical, Coaxial, Bluetooth.
>Hi-res wireless codec support such as LDAC, AptX HD, AptX LL, and more.
>Balanced Class A amplification buffer.

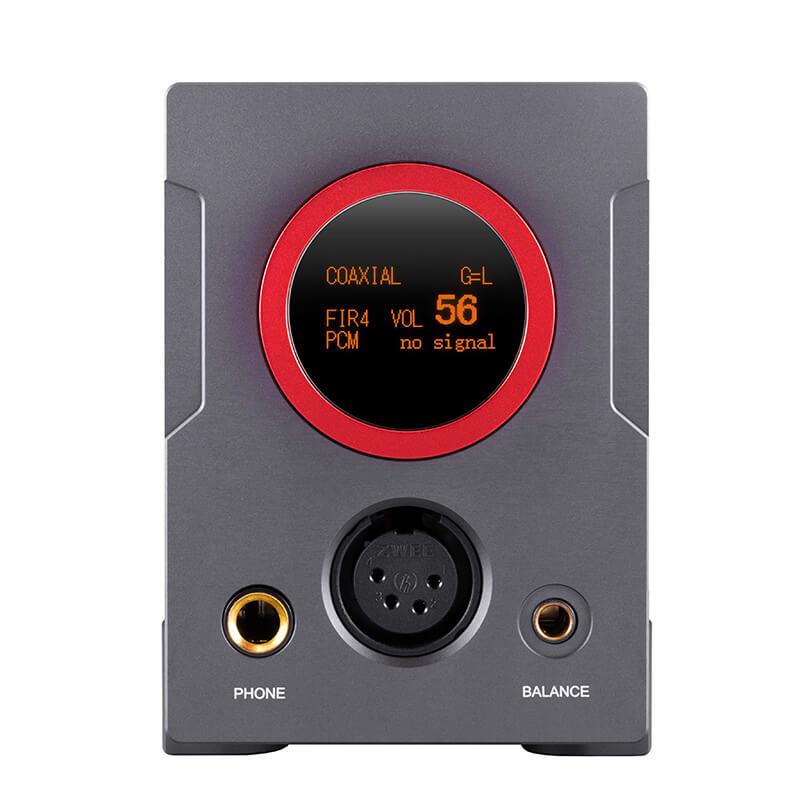

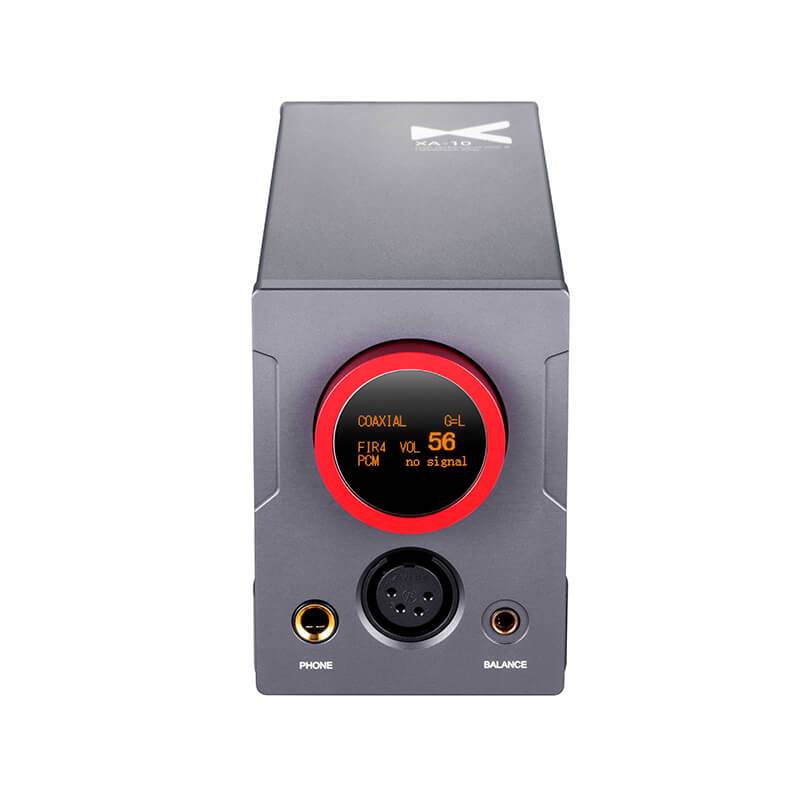

>Multiple headphone outputs (Balanced 4-pin XLR/4.4mm, and single-ended 6.35mm).
>High-end chipset components.
>Digital volume adjustment(100 levels).
>0.96” high-definition OLED display.
>Built-in Relay Protection.
>Output Power(Balanced): 4000mW @ 32Ω.
>Output Power(Single-ended): 3000mW @ 32Ω.
>Suitable Headphone Impedance: 16Ω-600Ω.
>THD+N: 0.0008%.
>SNR(Balanced): 120dB.
>SNR(Single-Ended): 115dB.
>Crosstalk(Balanced): 108dB.
>Crosstalk(Single-Ended): 73dB.
>Power Supply: DC12V/3A.
>Weight: 0.9Kg.

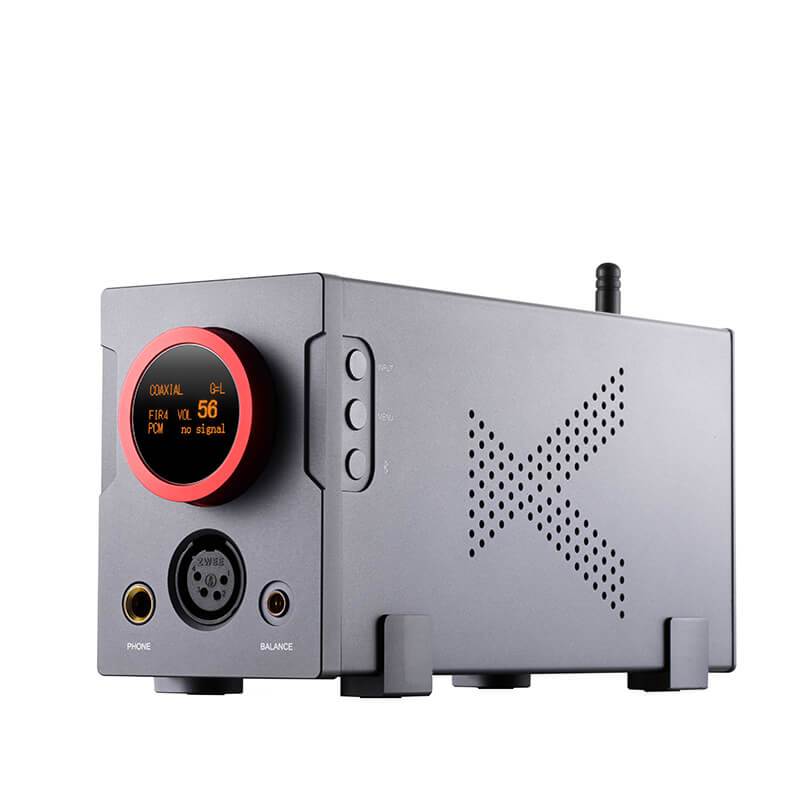

xDuoo XA-10 is the latest fully balanced desktop DAC/AMP featuring a high-performance audio chipset. The device is equipped with two premium AK4493 DAC chips for hi-res audio signal decoding paired with latest generation XMOS XU216 USB signal receiver chip providing PCM decoding up to 32-Bit/768kHz and DSD up to DSD512 natively. The device also supports full MQA(Master Quality Authenticated) decoding. Grab this powerful beast for powering your hungry headphones and make them shine with all their glory.
Fully Balanced Chipset Archiectecture:-
xDuoo has equipped the XA-10 with two independent DAC chips with two independent amplifiers, presenting the users with unmatched high-quality audio output with rich clarity, ultra-low distortion, and a super-clean background with high SNR ratings.
High-Performance AKM DAC Chips:-
For hi-res audio signal decoding in the XA-10, xDuoo has opted for premium DAC chips from AKM technologies. They have used two AK4493 DAC chips. The XA-10 pairs these powerful DAC chips with premium XMOS XU216 USB signal receiver providing hi-res audio signal decoding. The XA-10 supports full MQA decoding, PCM decoding up to 32-Bit/768kHz, and DSD up to DSD512 natively.
Class A Amplification Buffer:-
Utilizing high-quality transistors as a class A buffer, the XA-10 keeps the circuit in the best working condition at all times. The device is tested to delivers high-quality distortion-free output even at heavy loads with demanding headphones. It provides a super-clean output with ultra-low distortion ratings of 0.0008% bringing out the best for your headphones.
Powerful Balanced Headphone Output:-
The xDuoo XA-10 features fully balanced headphone output. It features 4-pin XLR and 4.4mm balanced headphone output. Both of these ports have an output power rating of up to 4000mW @ 32Ω of load. Along with these two balanced connections, the XA-10 also features a single-ended 6.35mm headphone output with output power of up to 3000mW @ 32Ω of load. This much power can bring the best out of your most demading headphones with ease.
Built-In Relay Protection:-
xDuoo has designed built-in relay protection for the XA-10 desktop DAC/AMP systems. It avoids the POP noise when the device is turned on, protecting the connected headphones/earphones and the device from sudden voltage fluctuations or other abnormal conditions.
